We document completed diagnostic cases to show the process of moving from symptoms and misleading variables to a verified root cause.

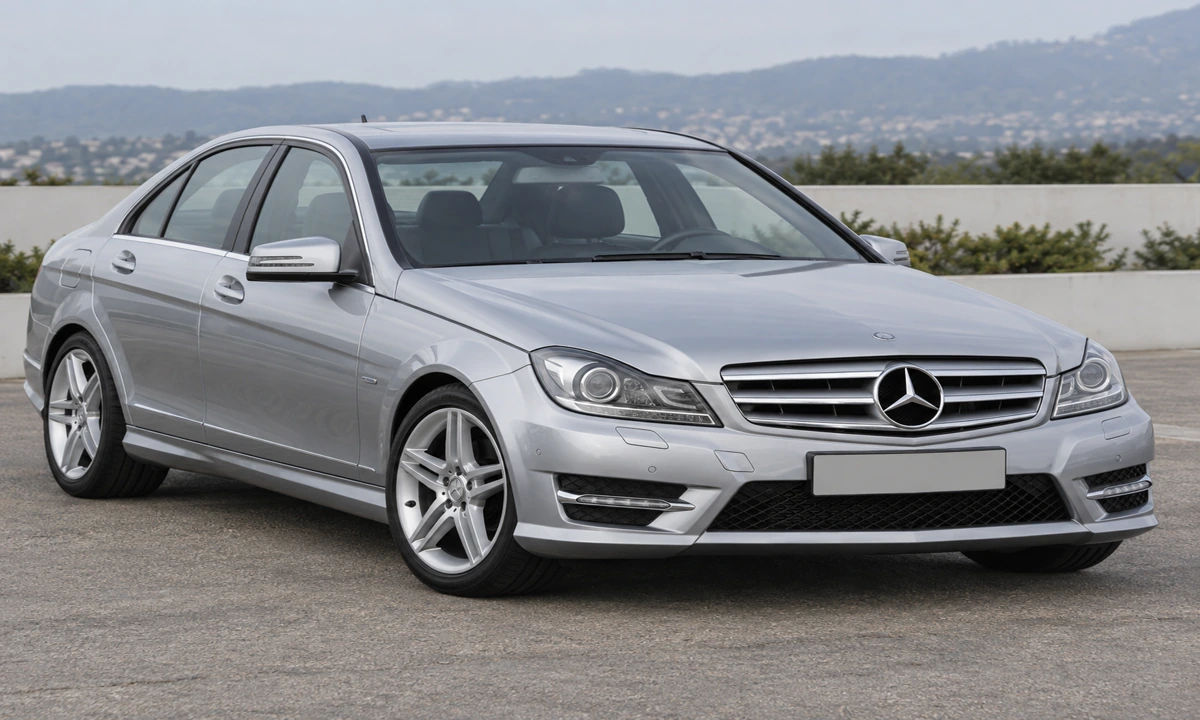

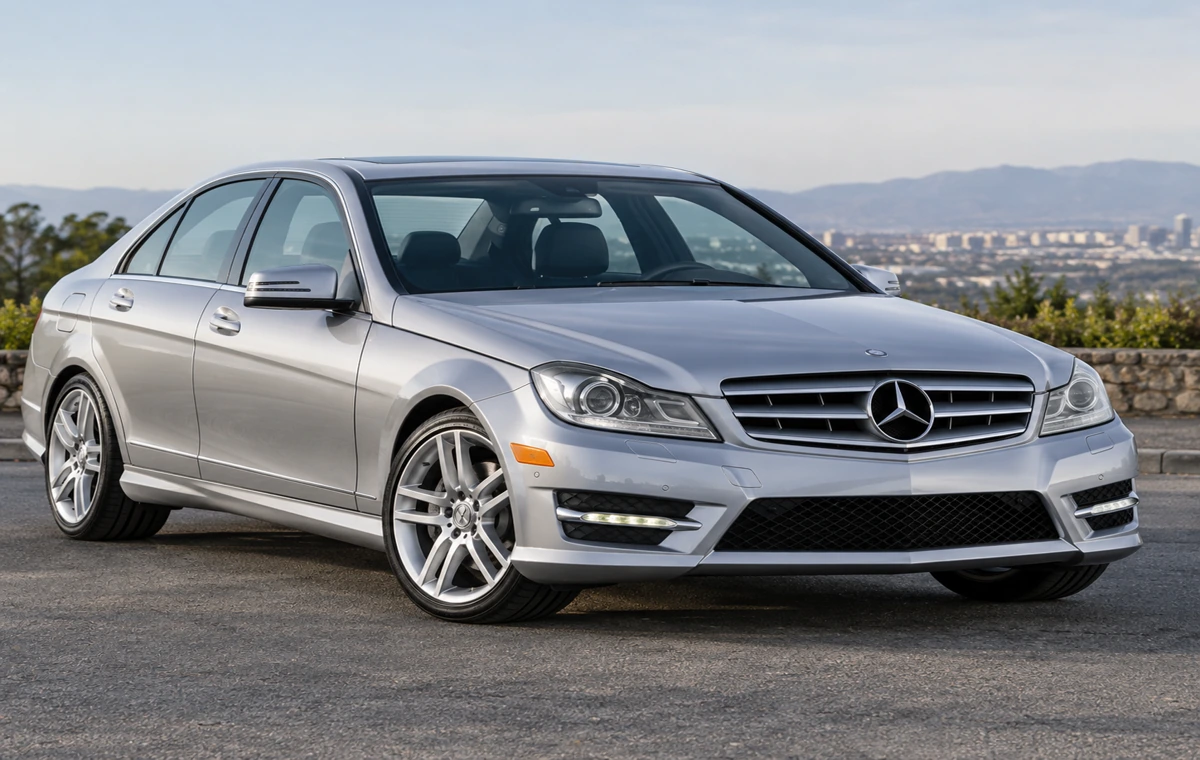

A sudden no-crank after heavy rain initially pointed toward the front SAM / fuse-box area. Several changing electrical symptoms made the failure look more complicated than it ultimately was.
Vehicle would not crank. The problem appeared around/after heavy rain and moisture exposure.
Water was entering near the fuse-box area, making moisture damage or a SAM-related problem a credible early suspect.
A melted/blown starter-related fuse, fuse replacement, changing relay behavior, and evolving power readings complicated isolation of the fault.
Instead of condemning the SAM or relay based on the early symptoms, testing continued downstream through the starter circuit and control path.
The control side was increasingly ruled out and the failed starter was ultimately confirmed as the root cause of the no-crank condition.
Multiple real symptoms can exist at the same time. The correct diagnosis came from following the circuit and testing the failure instead of replacing the most suspicious-looking module first.
Only real diagnostic work is shown here. Completed cases include the confirmed root cause and outcome; active cases are clearly marked in progress.
Changing electrical symptoms after heavy rain ultimately traced to a failed starter.
Metal debris caused the ignition to seize. No replacement parts required.
Intermittent steering-assist loss was ultimately traced to a high-resistance ground.
Sensor tested good; multiple wiring breaks to the PCM were the actual fault.
Vehicle was mechanically stable; dealer software update corrected the communication condition.
A seized idler pulley—not the belt—was the root cause of repeated failure.
Coil testing isolated an ignition-coil issue and avoided deeper component replacement.
Cooling loss traced to the compressor control solenoid instead of the compressor.
Loose connector caused the intermittent fault; no parts or seat teardown required.
Cracked fuel-pump flange replaced; EVAP readiness monitor passed on October 7, 2026.
Multiple leak paths tested; remaining work is focused on the confirmed final areas.
Float travel or installation geometry remains under final confirmation.
The ignition began binding randomly over a 1–2 week period, then eventually seized completely and broke the key. Replacement assemblies were around $1,000, and the installed/programmed repair path was approximately $2,000.
Intermittent ignition binding became progressively worse until the cylinder locked completely and broke the key.
A replacement ignition assembly plus installation and programming was roughly a $2,000 repair path.
The ignition assembly was removed from the vehicle and disassembled instead of being replaced immediately.
Small metal shavings inside the ignition mechanism were physically interfering with the cylinder and causing it to bind.
The debris/interference was corrected, the original assembly was reassembled and reinstalled, and no replacement parts were required.
The original ignition has continued operating correctly for approximately three years after the repair.

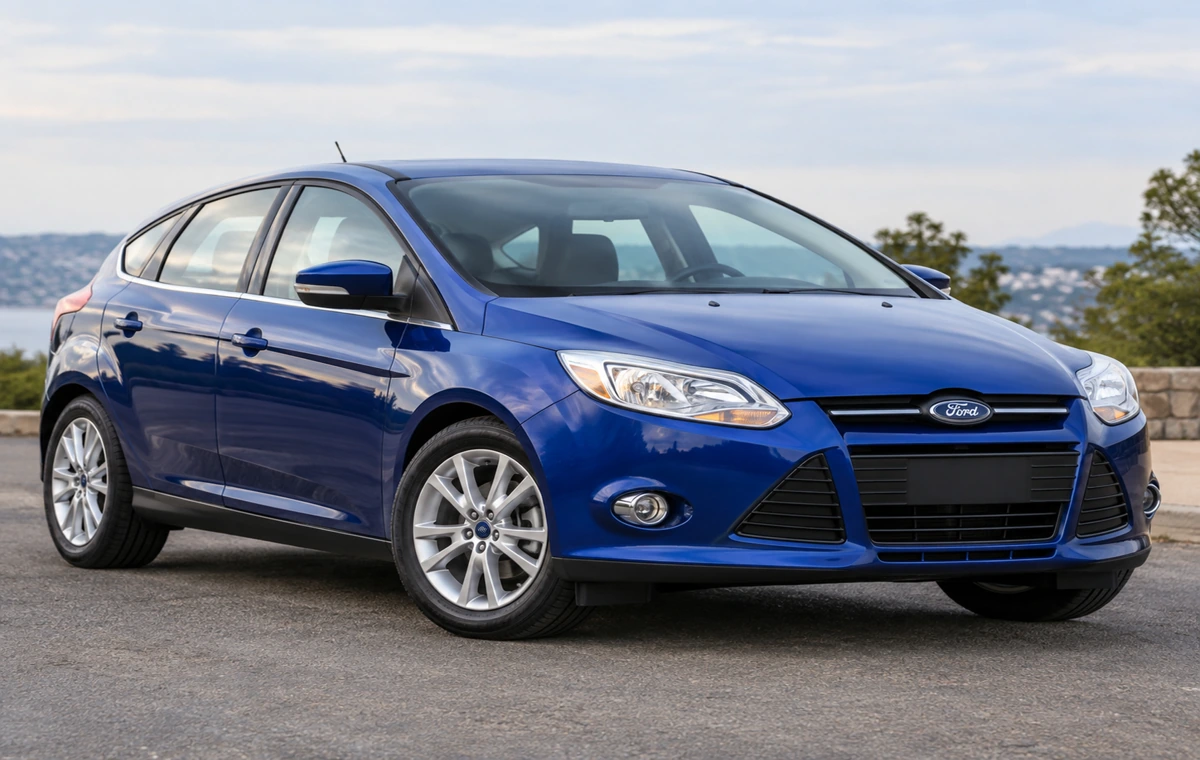

This was one of the highest-stakes Focus issues because the steering assist could drop out intermittently while driving. Battery sensitivity, intermittent behavior, and a previously damaged steering unit all made the failure easy to misdiagnose.
Electric power steering assist would intermittently fail, including after bumps or restarts.
Battery state appeared to correlate with the fault, which initially made low voltage look like the primary cause.
The steering unit / rack had also been physically damaged and had already been replaced, adding another credible but incomplete explanation.
Instead of assuming the replacement rack solved the issue, the electrical path and system grounds were checked for intermittent high resistance.
The recurring electrical fault was ultimately traced to an intermittent / high-resistance ground.
Correcting the ground resolved the electrical steering fault and addressed the biggest remaining potential mishap on the vehicle.
A camshaft-sensor-related fault initially pointed toward the sensor, but testing showed the sensor itself was good. The actual failure was in the wiring between the sensor circuit and the engine computer.
The diagnostic trouble code pointed toward the camshaft sensor circuit.
The camshaft sensor tested good, so replacing it would not have corrected the underlying fault.
Multiple breaks were found in the wiring path between the sensor circuit and the PCM / engine computer.
A new wire run was installed to restore the circuit.
Some roughness remained after the electrical repair and was diagnosed separately rather than being assumed to be part of the same failure.
The remaining roughness was corrected by replacing an engine mount.

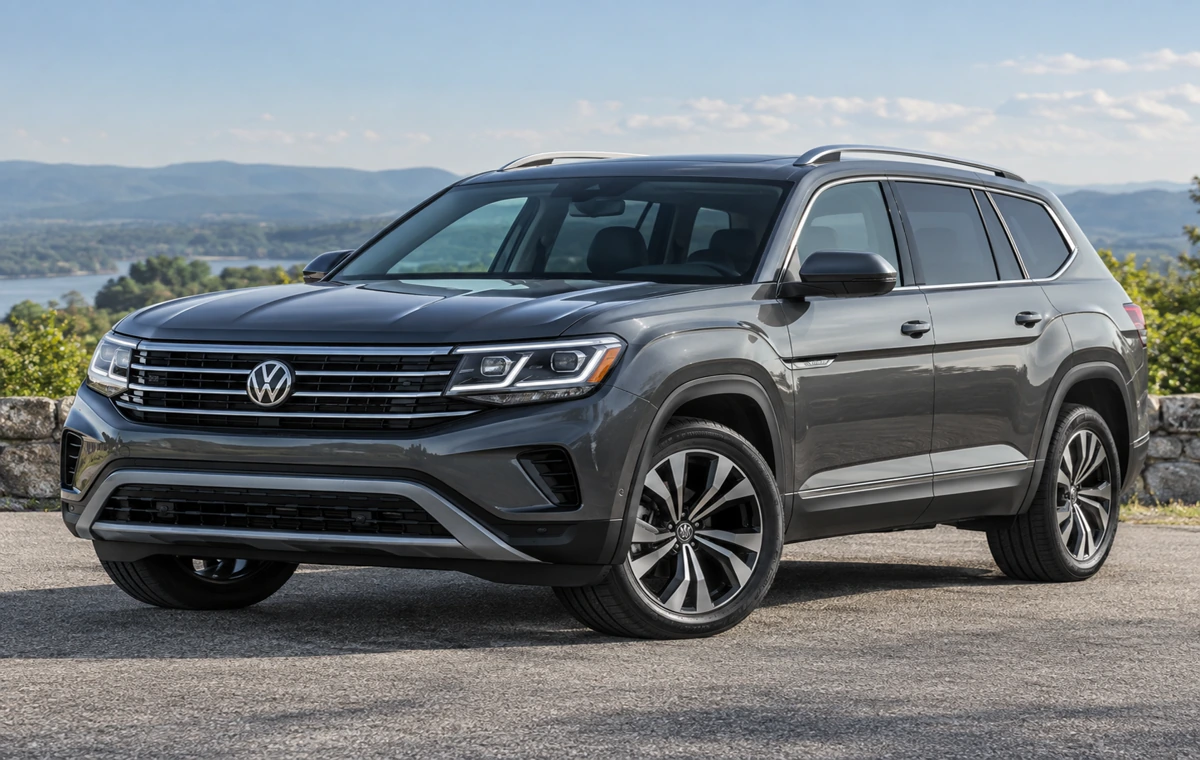

A roughly one-year-old Atlas presented with widespread warning messages and communication-related faults. The immediate question was whether the vehicle had a serious mechanical problem or could safely be driven to the warranty dealer.
Multiple warning lights and lost-communication faults appeared across the vehicle.
Vehicle systems were scanned to determine whether the warnings represented an active mechanical failure or a communication/software condition.
The engine was verified to be running normally.
Testing verified the vehicle was not overheating despite the warning environment.
The vehicle was assessed as safe to drive to the warranty dealership instead of being treated as an immediate mechanical breakdown.
The dealer corrected the condition with a software update; no major mechanical repair was required.
The vehicle lost warning-light functions, power steering and A/C after a serpentine belt failed on the highway. A roadside replacement belt then failed again almost immediately.
The serpentine belt failed while driving, taking accessory-driven systems offline.
A replacement belt was installed roadside but failed again, showing that the belt itself was only the symptom.
The accessory drive was inspected for the component causing repeated belt failure.
A seized idler pulley was identified as the cause.
The pulley was approximately $15; with the replacement belt, the repair was about $50 total.
The vehicle continued operating for months afterward without another belt issue.
An intermittent startup misfire could have led toward injector or deeper engine work. Coil swapping and testing instead narrowed the fault to the ignition side.
Intermittent misfire during startup.
Ignition coils were swapped and tested to see whether the symptom followed the ignition component.
The results pointed to an ignition-coil issue instead of immediately escalating to injector or internal-engine work.
A better-sealed OEM-style ignition coil was installed.
The replacement coil was approximately $8.
The startup misfire was eliminated without injector replacement or engine teardown.
The air-conditioning system progressively lost cooling performance during roughly 100°F weather. A compressor replacement would have been a high-cost path, but diagnosis isolated a much smaller control failure.
A/C performance gradually deteriorated until the system was no longer cooling effectively.
The failure became especially obvious during very hot weather, increasing the urgency of restoring cooling.
The system was evaluated for control and compressor-operation issues rather than assuming the complete compressor had failed.
The failed component was isolated to the compressor control solenoid.
The control solenoid was replaced and the R-134a system was recharged.
The repair was completed for under $100 in parts/materials versus a compressor replacement path around $1,000 and a prior dealer repair around $1,500.
The driver heated seat stopped operating intermittently. Rather than replacing the heating element or disassembling the seat, the circuit and connection were checked first.
Driver heated seat was not operating correctly and the fault was intermittent.
Seat-heater faults can lead to unnecessary replacement of heating elements, switches, modules, or seat disassembly if the connection is not checked first.
The issue was traced through the seat-heater connection rather than immediately treating the heater assembly as failed.
A loose electrical connector was causing the intermittent failure.
The connector was properly re-secured.
No replacement parts and no seat teardown were required.
A fuel-vapor leak was traced to a cracked fuel-pump flange. After replacement, the fuel smell resolved; follow-up verification confirmed the EVAP readiness monitor had passed on October 7, 2026.
Fuel smell and an EVAP concern required inspection of the fuel-system sealing points.
The fuel-pump flange was cracked, providing a physical source for the fuel-vapor leak.
The fuel-pump assembly was replaced, and the fuel smell resolved.
On October 7, 2026, the EVAP readiness monitor was confirmed passed/ready, providing an objective post-repair verification result.
These cases are shown for transparency but will not be presented as completed until the final cause and repair have been confirmed.
No sunroof. Cab lights and prior window/door leak points were resealed and passed testing. The remaining confirmed work is focused on the HVAC/AC intake area under the passenger-side cowl, the driver-side door seal, and the damaged/missing cowl plastic.
Sender resistance has changed through a plausible range and the gauge responds to fuel added, but travel remains inconsistent. Float binding or installation geometry remains the leading theory pending confirmation.
